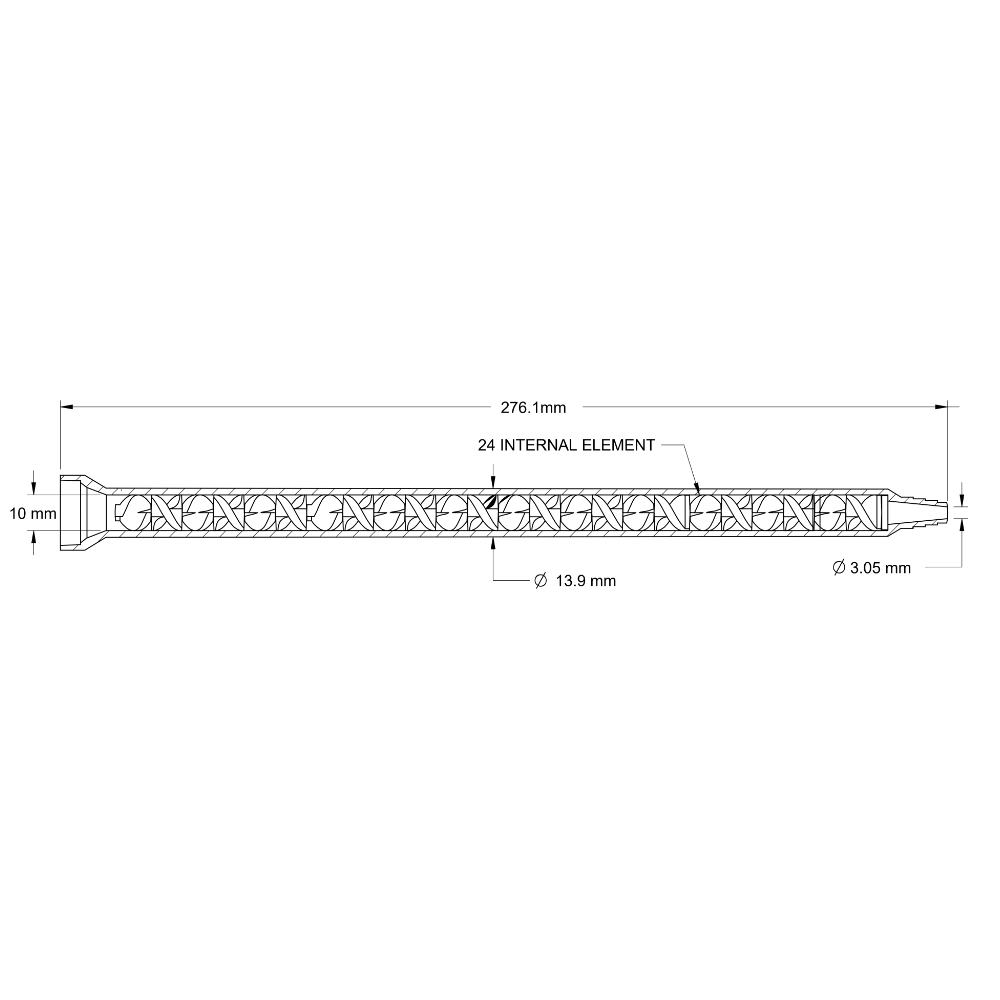

Static Mixer Flumasys MS 10-24
Static Mixer Flumasys MS 10-24
PN: F-MS1024
|
Type
|
Bell |
|---|---|
|
Mixing Elements
|
24 |
|
Housing Outlet
|
Stepped |
|
Element Diameter (mm/inch)
|
10.00 / 0.393“ |
|
Outside Diameter (mm/inch)
|
13.90 / 0.547“ |
|
Bell Inlet Housing (mm/inch)
|
16.69 / 0.657“ |
|
Elements Material
|
High Strength Polyacetal |
|
Housing Length (cm/inch)
|
27.40 / 10.78“ |
|
Mixer Material
|
Polypropylene |
|
Outlet Tip Orifice (mm/inch)
|
3.00 / 0.11“ |
|
Brand
|
Flumasys |
